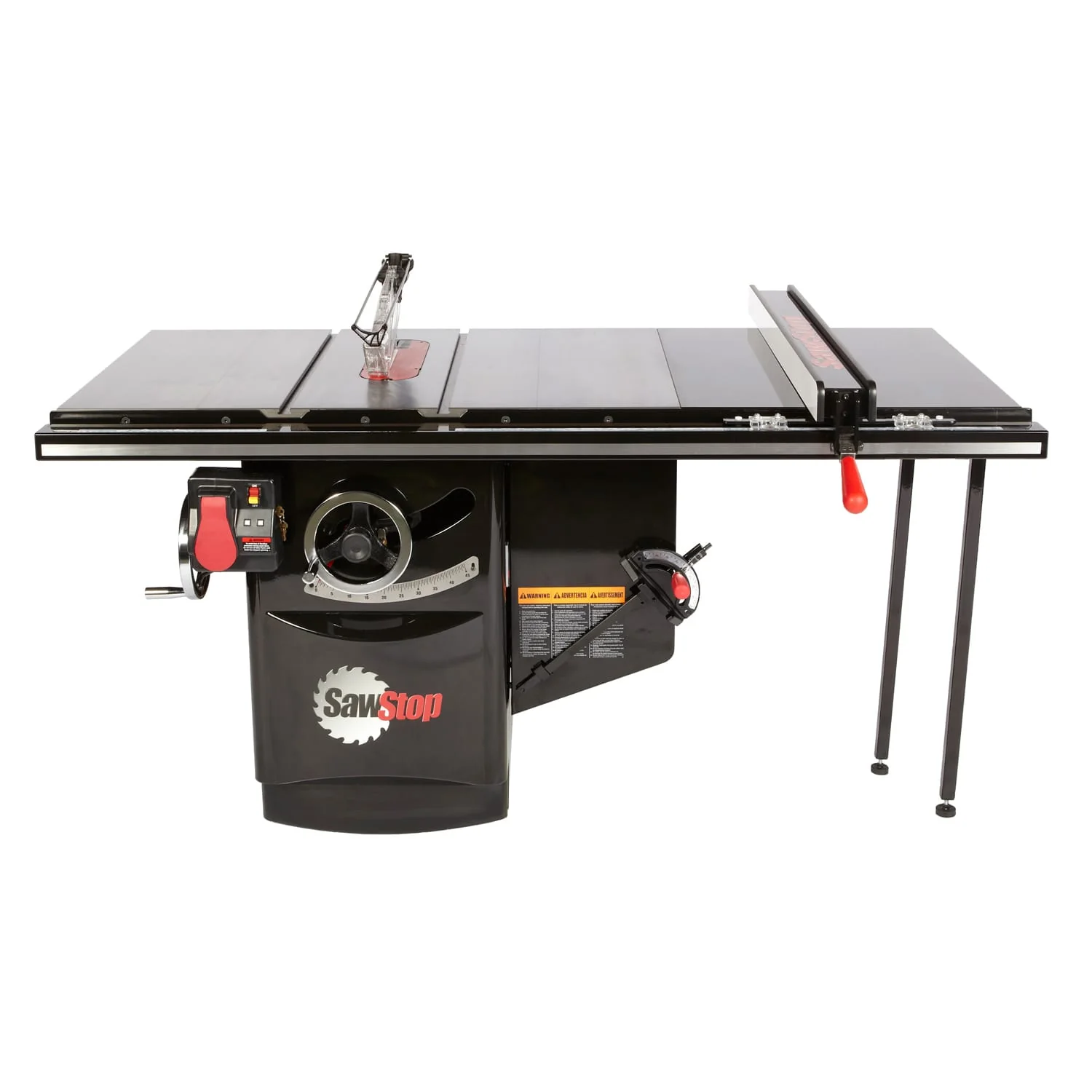

7.5 HP 3 PH 480V Industrial Cabinet Saw with 36" Industrial T-Glide Fence System
The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet saw available. The 7.5 HP, 3 PH, 480V configuration with a 36" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop’s patented safety system can provide.
Features
- SawStop’s patented safety system
- Riving knife reduces the risk of kickback
- Tool-free quick-change blade guard mount
- Diagnostic system ensures the saw is ready to respond
- Dust-Collection Blade Guard
- 36" Industrial T-Glide Fence System
Specifications
- Motor: 7.5 HP, 3-Phase, 480V 60 HZ
- Overall saw dimensions: 69-1/4" W x 36-1/2" D x 34" H
- Cabinet footprint: 20" x 25"
- Cast-iron table: 24" W x 30" D
- Cast-iron table size with extension wings: 44" W x 30" D
- Blade: 60-tooth, professional grade, 5/8" arbor
- Blade diameter: 10"
- Blade tilt: left
- Blade kerf: 0.118" (3 mm)
- Blade plate thickness: 0.078"
- Max. depth of cut, blade at 0º: 3-1/8"
- Max. depth of cut, blade at 45º: 2-1/4"
- Max. rip, left of blade: 12-1/2"
- Dado diameter: 8" (requires a separate brake cartridge and table insert)
- Dado max. width: 13/16"
- Arbor diameter at blade: 5/8"
- Table in front of blade (max. elevation): 11"
- Table behind blade (max. elevation): 9-3/4"
- Table flatness measured diagonally: 0.010" maximum gap
- Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
- Dust-collection port diameter: 4"
- Riving knife/splitter thickness: 0.090" (2.3 mm)
- Insert: zero clearance, phenolic core, melamine surfaces
- Belts: 2 V-ribbed belts
- Weight: 635 lbs.
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Inspect all freight shipments at time of delivery. If damage or missing pieces, are suspected, please note on driver paperwork.
Return Information
SawStop does not accept returns. If your shipment was damaged, please refuse shipment and call SawStop's customer service department at 503-595-2665.
Warranty Information
SawStop warrants that their saws are free from defects in materials and workmanship for a period of two years from the purchase date, and covers their motors for a period of 5 years. If you have a warranty question, please contact SawStop customer service @ 503-582-9934.
